For incandescent and halogen lamps, dimmable fluorescent lamps and low-voltage lamps with transformers (800 VA). Control: 0–10 V DC, potentiometer, single-button dimming control. Dimensions: W 90 × H 90 × D 56 mm. For DIN rail mounting. Weight: 500 g.

For incandescent and halogen lamps, dimmable fluorescent lamps and low-voltage lamps with transformers (1800 VA). Control: 0–10 V DC, potentiometer, single-button dimming control. Power: 3800 W. Dimensions: W 90 × H 90 × D 144 mm. For DIN rail mounting. Weight: 800 g.

RVE offers the only series of high-power dimmers on the market, with power ratings ranging from 5,500 to 11,000 W. These dimmers are designed for large lighting installations in prestigious buildings, large shopping centres and industrial complexes. They are compatible with incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with ferromagnetic transformers, and electronic transformers using leading-edge dimming.

The Live Dimmer Pack stands out with its unique design. It is suitable for theatres, TV studios, touring productions and exhibitions. Easy operation: A control panel with two displays and eight buttons provides direct access to all functions. Available models: 6 or 12 × 3 kW, and 3 or 6 × 5 kW.

For incandescent and halogen lamps, dimmable fluorescent lamps and low-voltage lamps with transformers (1600 VA). Control: 0–10 V DC, potentiometer, single-button dimming control. Dimensions: W 90 × H 90 × D 144 mm. For DIN rail mounting. Weight: 800 g.

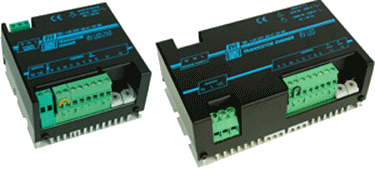

Dimmer for all types of dimmable 230 V LED lamps. Supports leading-edge or trailing-edge dimming and various control modes, including push-button, fader, 0–10 V DC and master/slave. Dimensions and weight: RVLED250: 5 modules; L 90 × H 90 × D 55 mm; 0.5 kg. LED500: 8 modules; L 144 × H 102 × D 56 mm; 0.62 kg

Modular dimmer cabinet with power modules using leading-edge dimming with triacs or thyristors, trailing-edge dimming with transistors, or transistor-based sine-wave dimming. Various configurations are available. Control is possible via DMX512, sACN or Art-Net. Software for remote configuration and monitoring via an external PC is available.

12-channel power unit with 12 × 10 A. All outputs are protected by 10 A, C-curve, single-pole circuit breakers. Well suited for permanent installations. Control: DMX512. Connection: 5 × 6 mm² cable.

For incandescent and halogen lamps, dimmable fluorescent lamps and low-voltage lamps with transformers (2700 VA). Control: 0–10 V DC, potentiometer, single-button dimming control. Power: 3800 W. Dimensions: W 90 × H 90 × D 144 mm. For DIN rail mounting. Weight: 800 g.

Single-channel power unit, 1 × 13 A, with 3 × T13 socket outlets. Internal control via potentiometer or DMX512 input. Power cable with T13 plug and built-in 13 A circuit breaker.

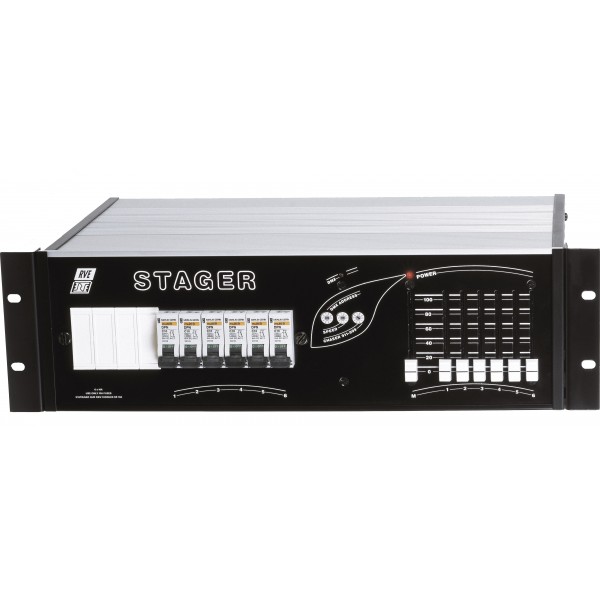

The STAGER is a power unit with six lighting control channels. These can be controlled either via the built-in faders or externally via a digital DMX control signal. Control: DMX512, six built-in potentiometers with master control. Each channel is protected by a 10 A circuit breaker, in accordance with national regulations. Outputs can be fitted with plugs or terminal connections as required. The STAGER is suitable for theatres, multipurpose halls, museums, school auditoriums, nightclubs, touring productions and more.
